Belt Conveyor Pmdd Permanent Magnet Direct Drive System
Pmdd
Permanent Magnet Direct Drive system.pdf

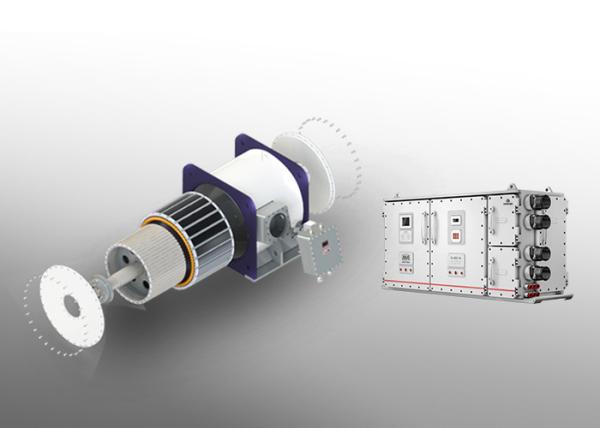

Intelligent Permanent Magnet Direct Drive Transmission System
The intelligent permanent magnet direct drive transmission system
is composed of the core technologies of Jiaxuan Intelligent, which
uses the excellent characteristics of permanent magnet technology
in low-speed transmission, the low-speed direct drive transmission
system developed by Jiaxuan, and the intelligent drive and control
system. The system includes: a low-speed direct-drive special motor
developed with high-performance rare earth permanent magnet
materials, and an intelligent drive controller developed for
different drive system characteristics and operating conditions.
Features of Intelligent Permanent Magnet Direct Drive Transmission
System
Safe and reliable
Simple transmission chain, no intermediate transmission link,
intelligent frequency conversion drive with system failure reduced
by more than 80%, stable operation of equipment, small impact,
prolonged equipment life, low vibration and low noise.
Energy efficient
Without intermediate transmission links, transmission efficiency is
increased by 15%. The motor has high efficiency and high power
factor. The economic load range is wide, and the motor speed can be
adjusted according to the load, so that the energy consumption of
the auxiliary equipment is small.
Low starting current and low running current
No more than the rated current to start, the running current is
only linearly proportional to the load
Maintenance free system
Low operation and maintenance costs
The starting torque is large, the overload capacity is strong, the
rated torque starts, and the maximum overload can be three times
Application range
Belt conveyors, mills, scrapers, roller presses, powder separators,
low-speed pump direct drive solutions, etc. require low-speed
high-torque operation equipment, Instead of the reducer directly
drive operation.
